About this item

• 💁‍♀️【Tip】The switch can both work under DC12V & 24V . But the connetor is 12V JST male and female,which can't be connected to VST’s 24V driver. If you want to connect 24V's light,you need cut the connector cable and connect them by hardwired.
• 🌈【High Sensitivity】The sensor switch can be triggerred by wood, glass and acrylic. the maximum detective distance: Black wood: 50mm, Grey wood: 80mm, Brown Wood: 130mm, White wood: 150mm, Brown glass: 60mm, Clear acrylic: 80mm.

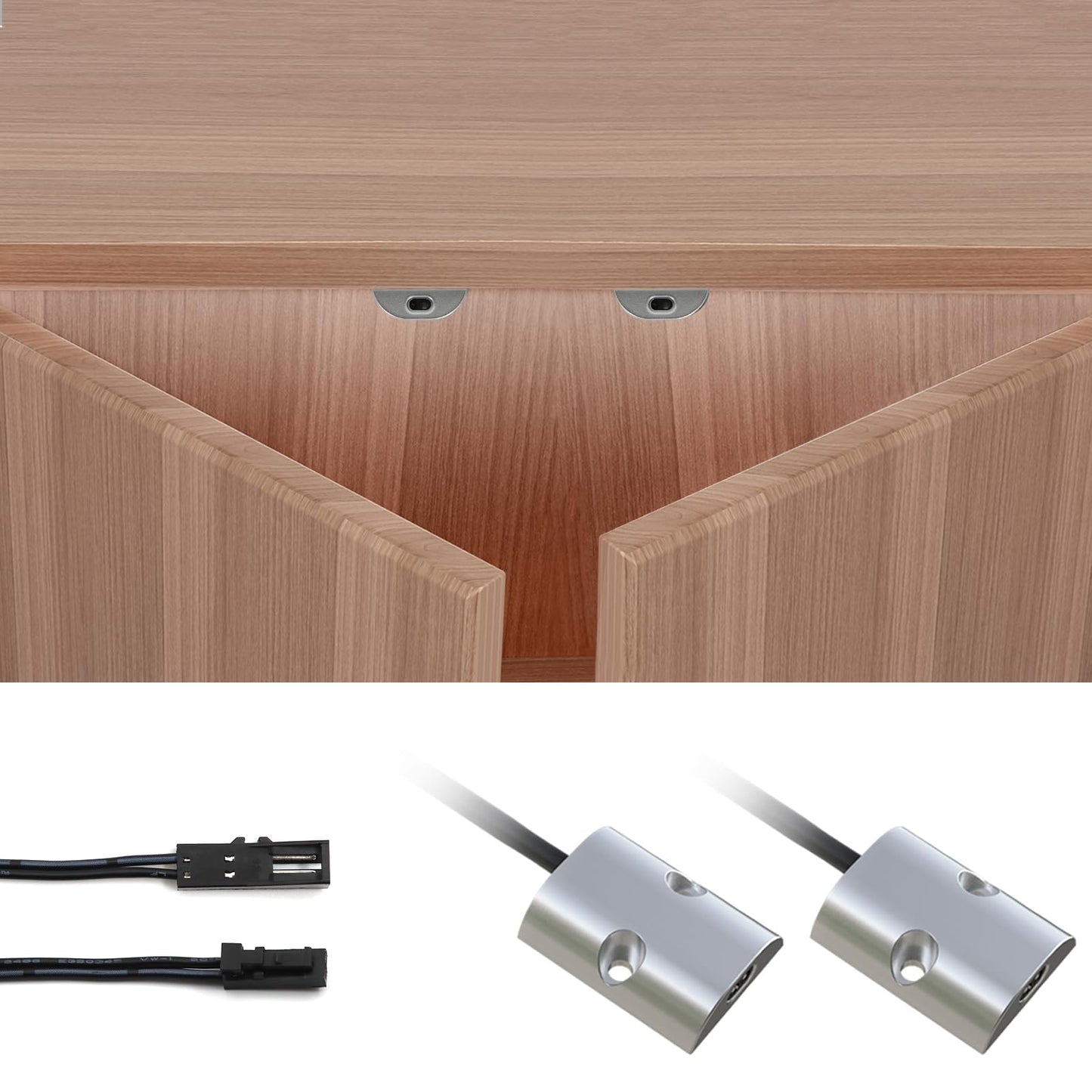

• 🌈【Smart Control】The sensor switch is triggerred by door open and close. keep one door open or two doors open, the ligh is on. Both doors close, the is off. The double door sensor is used to control12VDC/24VDC cabinet, wardrobe and closet LED lights.
• 🌈【Wide Application】The door sensor switch is surface mout and easily to installation. it can be used to control led lights in cabintet, closet, wardrobe, cupboard etc.
• 🌈【Energy Saving】 If you forget to close the door, the light will automatically turn off after one hour. A retrigger is required to work properly.
• 🌈【Reliable After-sales Service】Provide 2-year after-sales service,contact our US-based customer service team at any time for no-hassle troubleshooting and replacement or for any questions about purchasing or installation,we will try our best to help you.

Product Description

Are you still looking for the Double Door Sensor Switch ?

This is the updated door sensor switch. You can connect the sensor with a power supply and 12V DC LED lights to show you the most convenient performance.When one of the doors is opened, the light will automatically turn on,when both doors are closed, the light will be off.

High Sensitivity Automatically control the lamps according to the opening and closing the door, which is convenient and hands-free.	Secification Dimension: 30mm*23mm*7.5mm Switch Type: Door sensor Operateing Voltage:12/24V Rated current: 3A Rated Power: Max 30W for 12VDC Max 60W for 24VDC.	Sophisticated Look Bright silver It can be connected to most led lighting products and other low voltage lamps, only suitable for installation in cabinets with door.

Product information

Technical Details

Manufacturer	VST Lighting Co.,Ltd.
Part Number	‎ID06
Item Weight	‎2.89 ounces
Product Dimensions	‎5 x 0.7 x 4 inches
Style	‎Double Door Sensor, Surface Mount
Material	‎Plastic
Voltage	‎12 Volts
Mounting Type	‎Surface Mount
Switch Style	‎Mosfet
Included Components	‎Sensor Switch
Batteries Included?	‎No
Batteries Required?	‎No
Warranty Description	‎2 years
